Flexible Auger Forming Machine

Name: Flexible Auger Forming Machine
Brand: SpiralFlights

Multi-roll forming equipment configured around the required flexible auger section, coil geometry and production scope.

Engineering fit

Built around the dimensions, material and production target that matter

A roller-based machine route for producing flexible auger coils, planned with the incoming profile, target coil and required line components.

Use the stated range as a practical starting point. We confirm the final configuration against your drawing, material and operating conditions.

Discuss this product

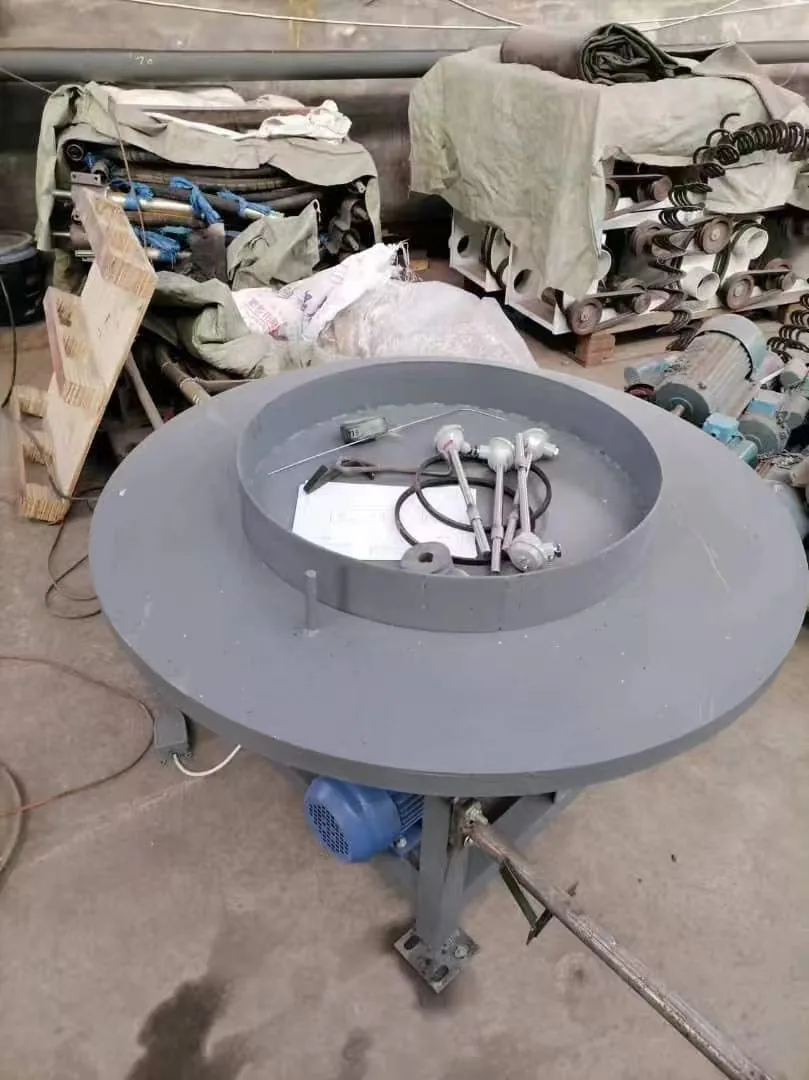

Material support prepared for a flexible auger forming line

Typical uses

Flexible auger production
Feed-line auger manufacturing
Drawing-based spiral bar forming

Product data

Product Specifications

Parameter	Specification
Forming input	Material grade, incoming bar or strip section and supply condition
Finished auger	Outside diameter, pitch, hand and cross-section from the approved sample or drawing
Forming arrangement	Multiple roller stations with tooling reviewed for the target profile
Line components	Material support, auger support, controls and thermal process scope confirmed by quotation
Utilities	Electrical supply and any heating requirement confirmed for the installation site

Workshop reference

Product and process views

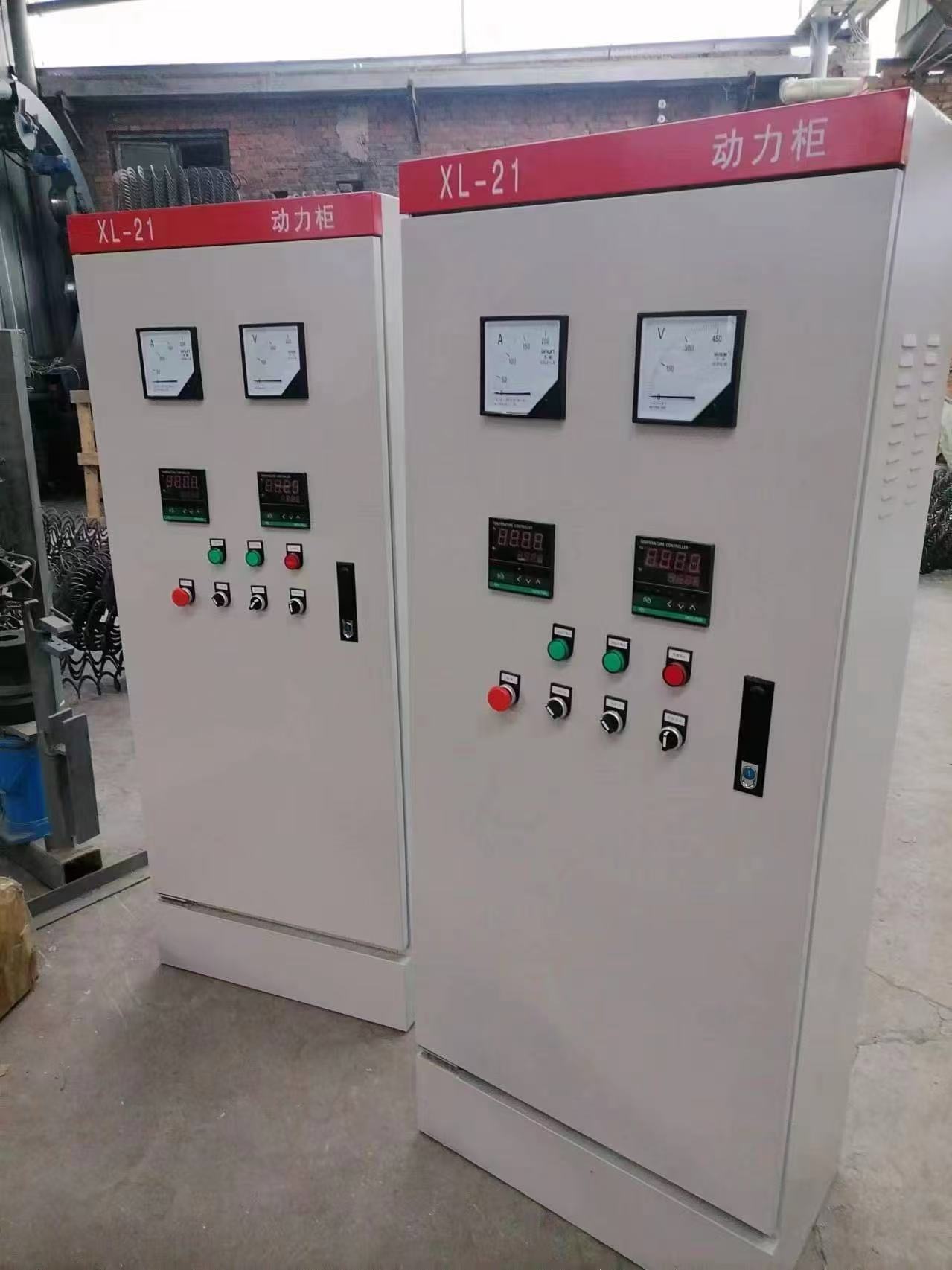

Control cabinets for a flexible auger forming line

Forming sequence

Incoming bar or strip is supported and guided through a series of forming stations. The tooling progressively develops the required helical form before the finished auger is supported or collected. The exact sequence depends on the starting section and target coil.

Define the incoming material

Provide material grade, cross-section, dimensional tolerance, supply condition and coil or straight-length form. If heating or another thermal step is required, state its purpose and the process information available from the material supplier.

Define the finished auger

Send outside diameter, pitch, hand and a clear cross-section drawing. Include the intended tube inside diameter and a sample if the machine must reproduce an existing auger. Multiple products should be listed separately rather than combined into one broad range.

Line scope and controls

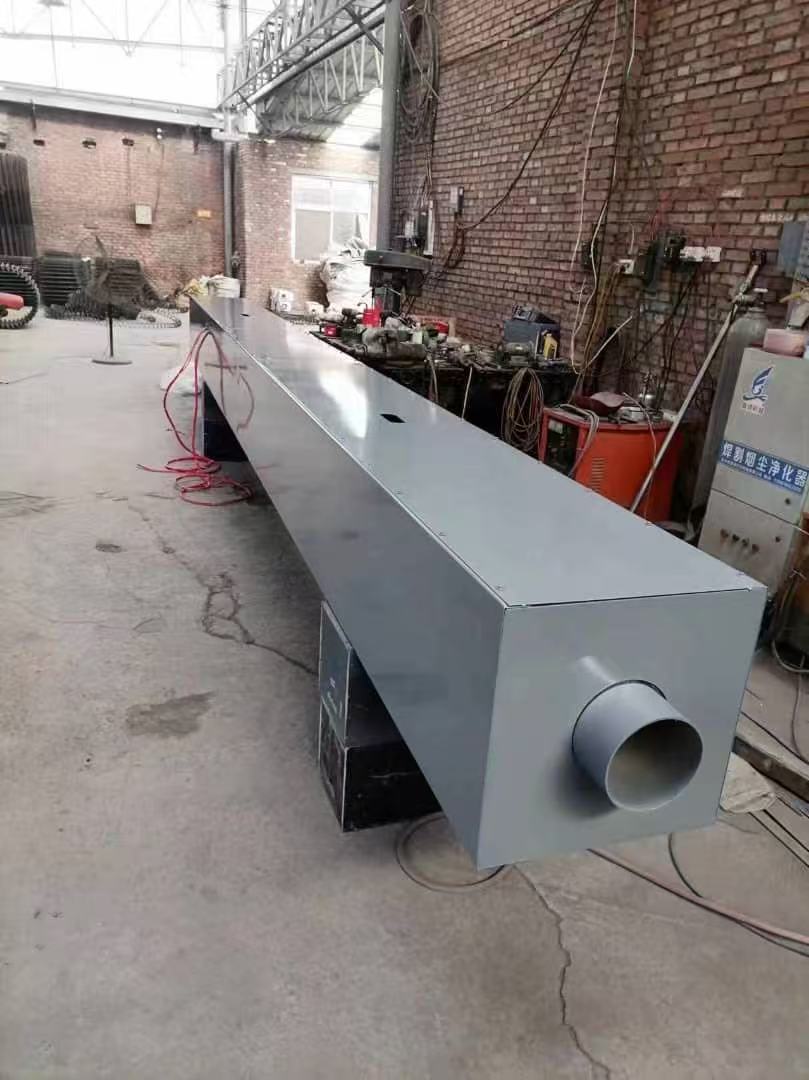

Available source material shows a forming unit, material support, auger support, control cabinets and a furnace as possible line elements. Their inclusion, size and control method are confirmed project by project. No automatic-control, capacity or universal-size claim is made without a final specification.

Installation inputs

Confirm site voltage, frequency and phase, available floor area, material-feed direction, ventilation needs and lifting access. Provide the preferred line orientation and any restriction on furnace or support length.

Quote checklist

Finished auger drawing and physical sample if available
Incoming material grade, section and supply condition
Required OD, pitch, hand and product list
Planned output or operating schedule
Site voltage, frequency and phase
Required forming, heating, support and collection scope
Workshop layout and material-flow direction
Tooling, commissioning and acceptance-sample requirements

Before quotation

Frequently asked questions

Use these answers as a starting point. Final geometry, material and equipment scope are confirmed from the project information.

What sample or drawing is needed before machine selection?

Send the incoming material section and the finished auger outside diameter, pitch, hand and cross-section. A physical sample and section photograph are useful.

Is a furnace always included?

Thermal processing appears in available line material, but it is not assumed for every order. Heating method, length and process purpose must be confirmed in the quotation.

Are rollers and tooling included?

Tooling scope is reviewed against the target auger profile and material. The final roller set, spindle or guide scope is stated in the machine quotation.

Which electrical supply should be prepared?

Provide site voltage, frequency and phase. Motor, controls and any heating equipment are matched only after the final line scope is confirmed.

Can one setup produce every auger size?

No universal range is assumed. Each required profile and coil geometry must be compared with the roller, guide and support configuration.
