GX800S Hydraulic Pressing Machine
Hydraulic pressing process for large, thick and custom-specification sectional screw flight segments with precision forming.
Engineering fit
Built around the dimensions, material and production target that matter
A hydraulic forming route for sectional spiral blades where larger dimensions, thicker plate or difficult materials need individual control.
Use the stated range as a practical starting point. We confirm the final configuration against your drawing, material and operating conditions.
Discuss this product- Large sectional flights
- Wear-resistant steel flighting
- Stainless steel segments
- Small-batch custom production
Size reference
Available Dimension Range
Typical sizes are shown below. Custom dimensions can be produced based on your drawing or requirements.
| Parameter | GX800S |
|---|---|
| Power Kw 380V/3Ph/50Hz | 7.5 |
| Machine Size L*W*H cm | 3200*970*1200 |
| Machine Weight kg | 1500 |
| Thickness mm | 30mm mild steel and Stainless steel wear-resistant steel |
| Max OD mm | 1800 |
| Min ID mm | 25 |
| Pitch Range mm | 100-800 |
| Max Width mm | 25-450 |
Workshop reference

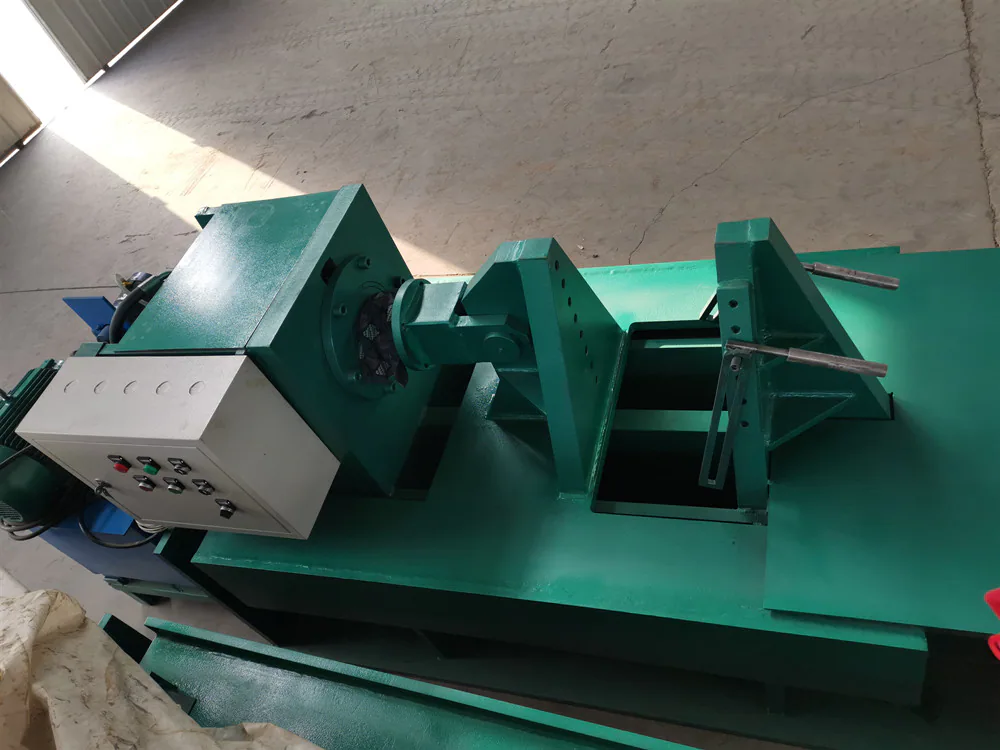

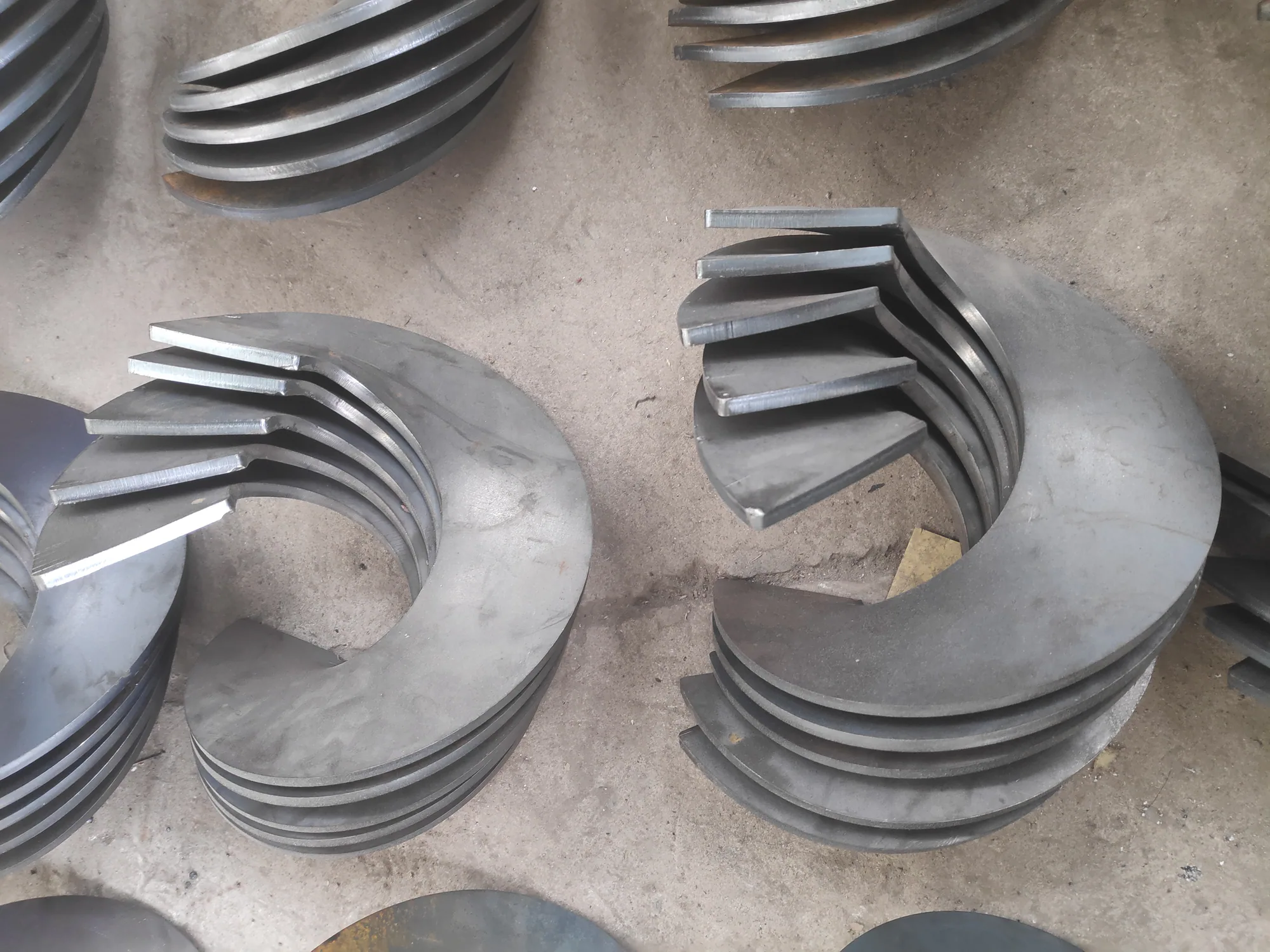

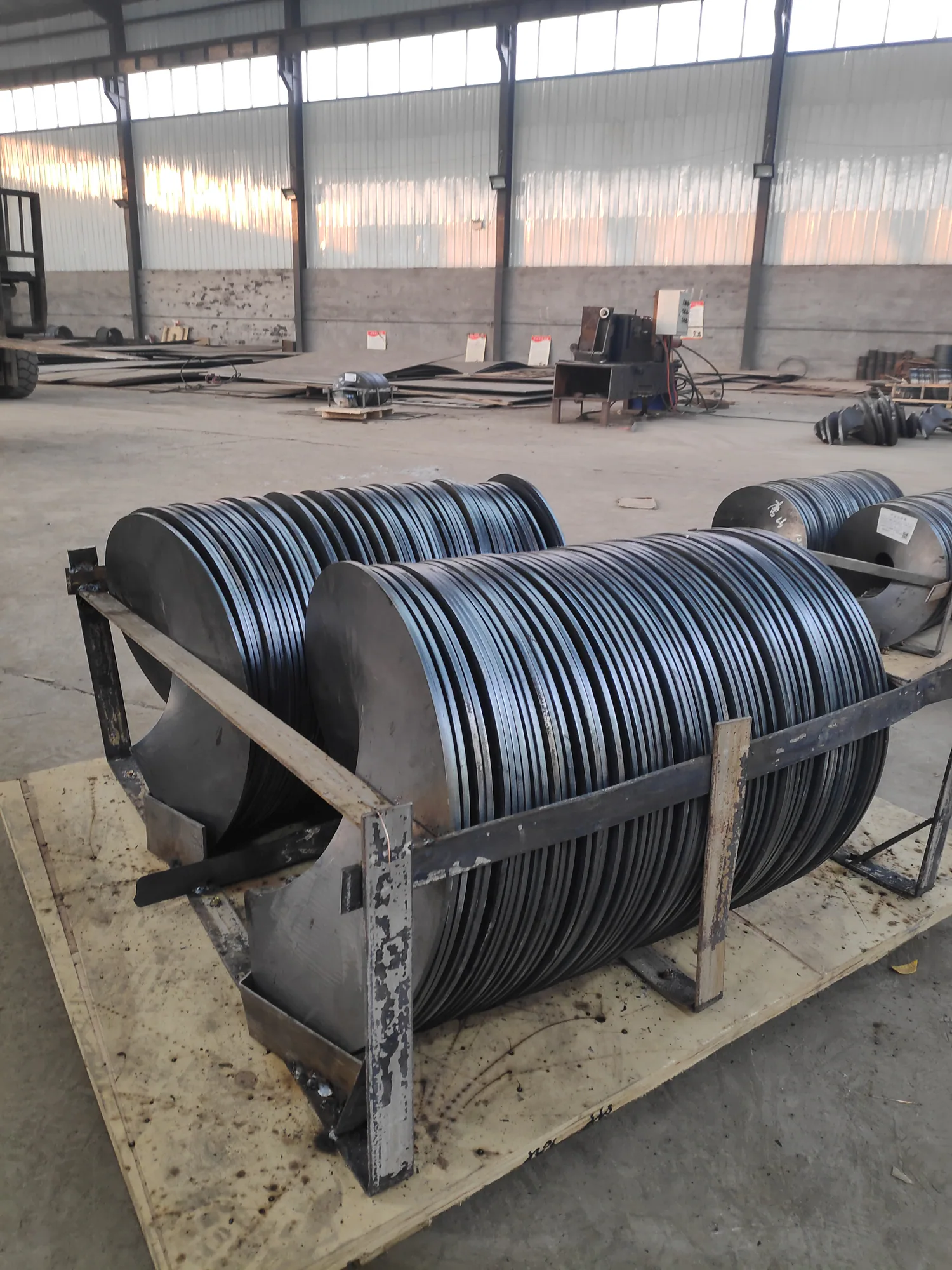

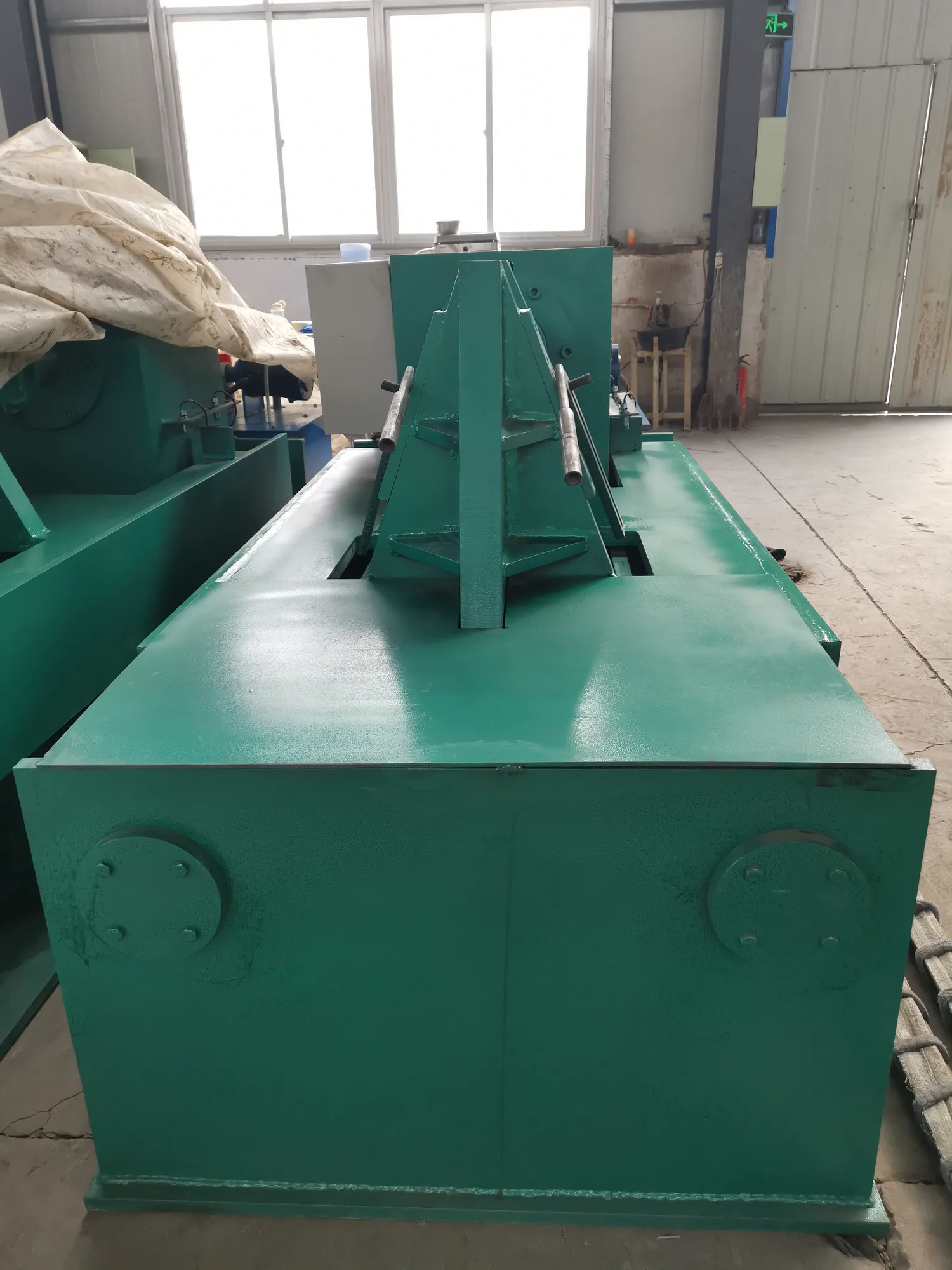

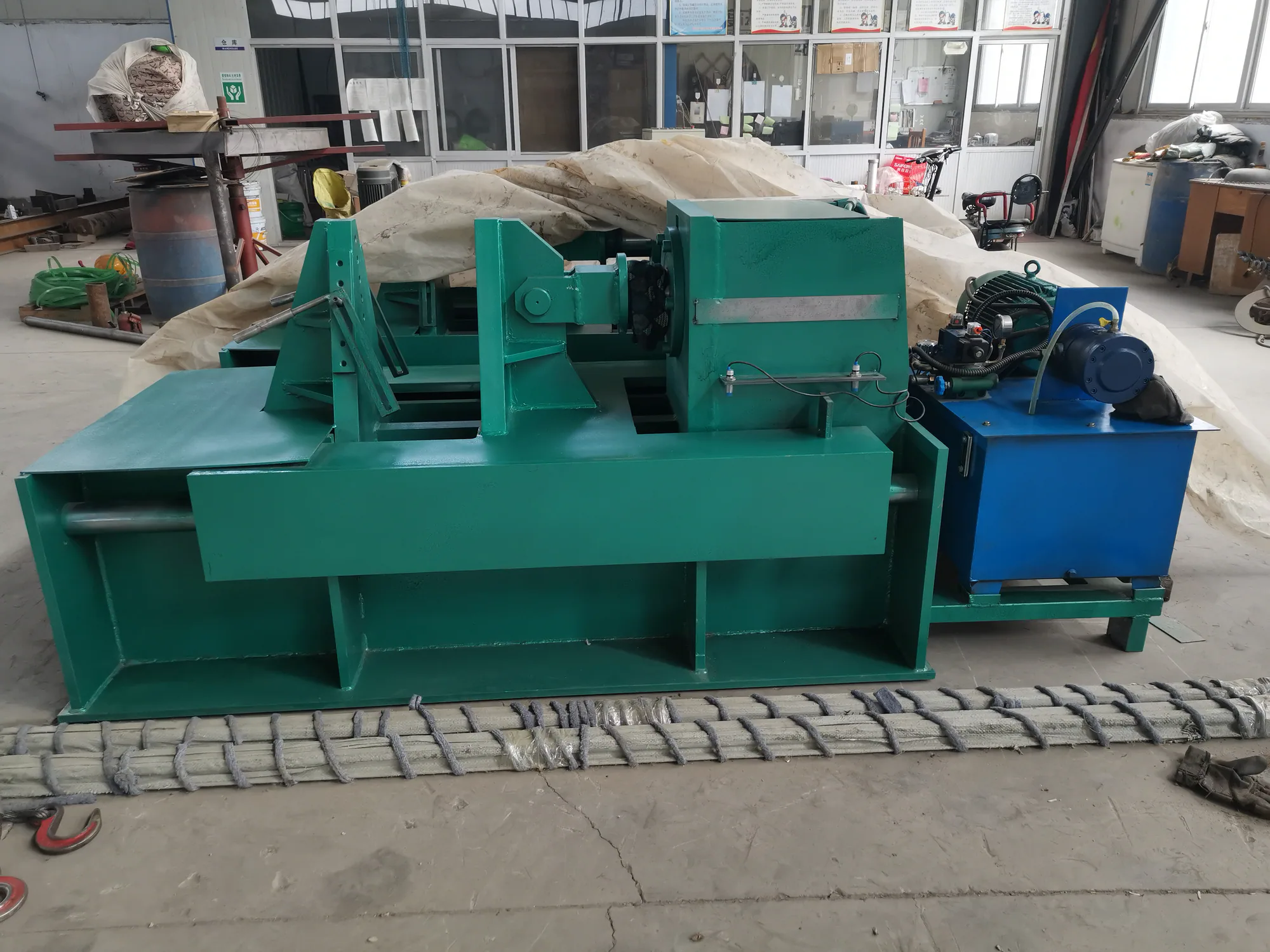

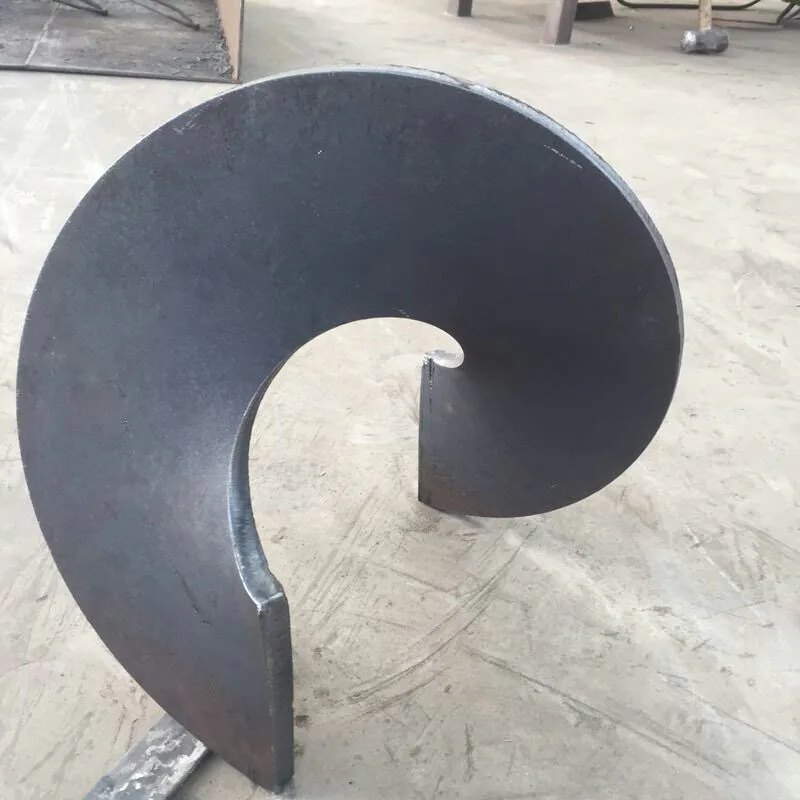

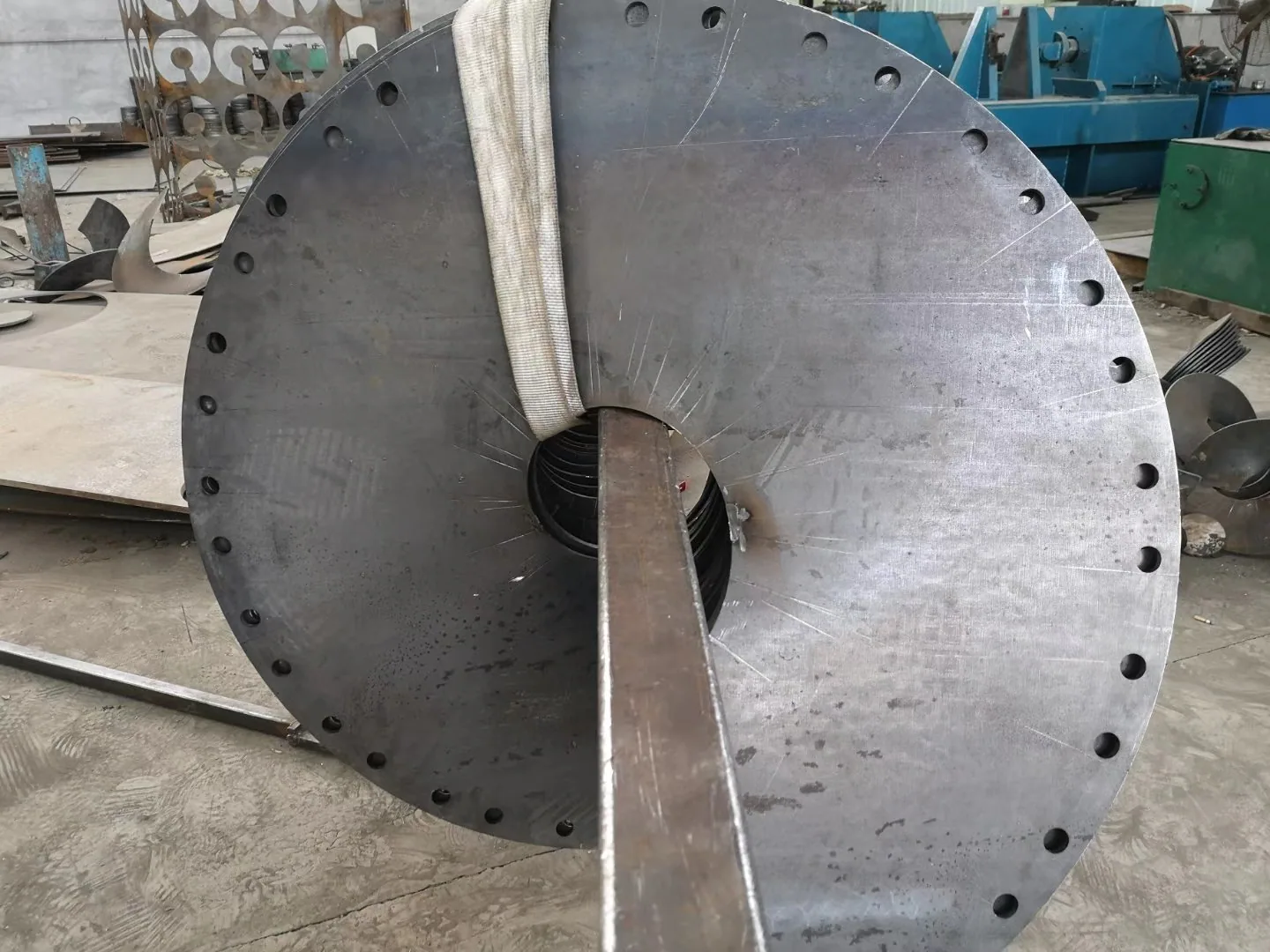

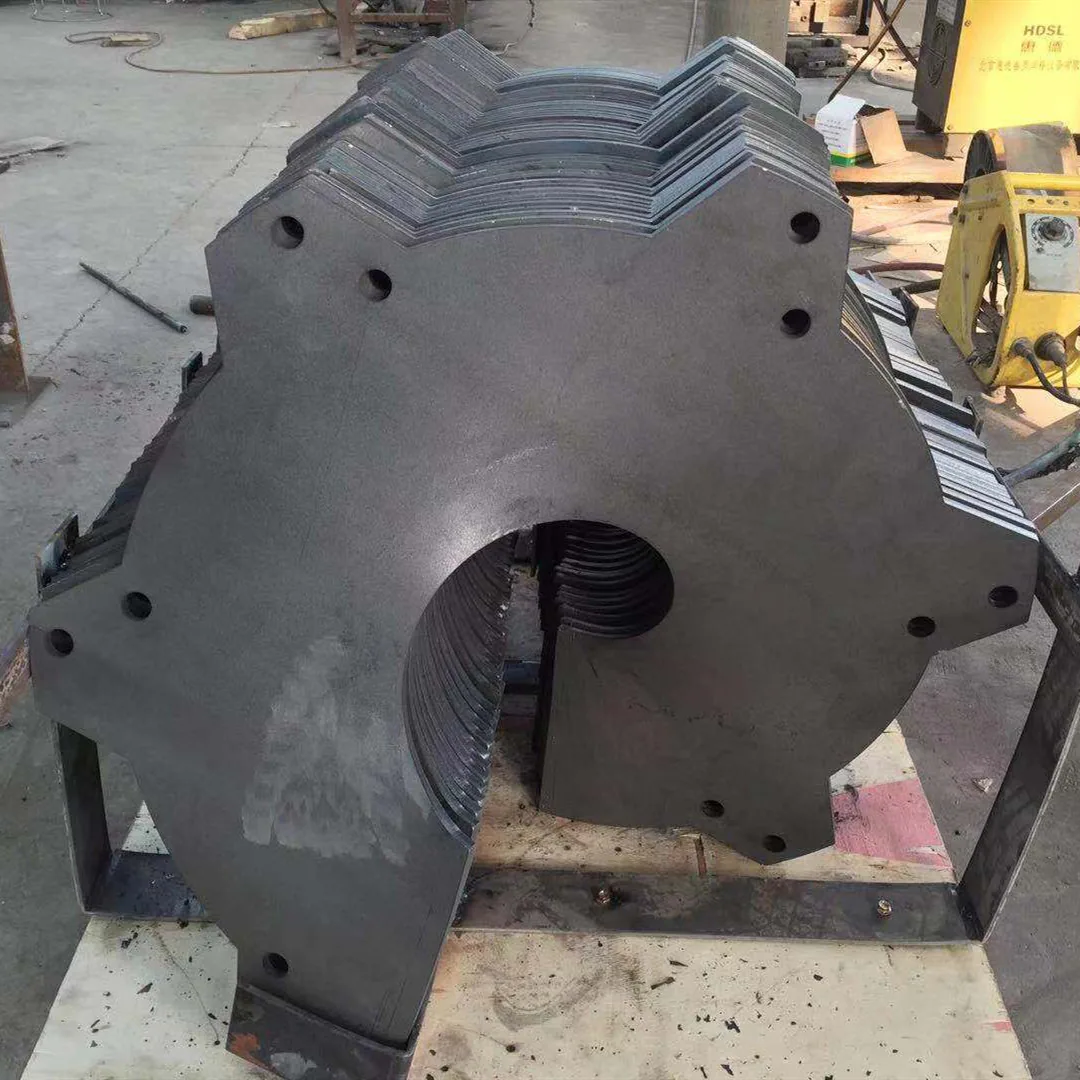

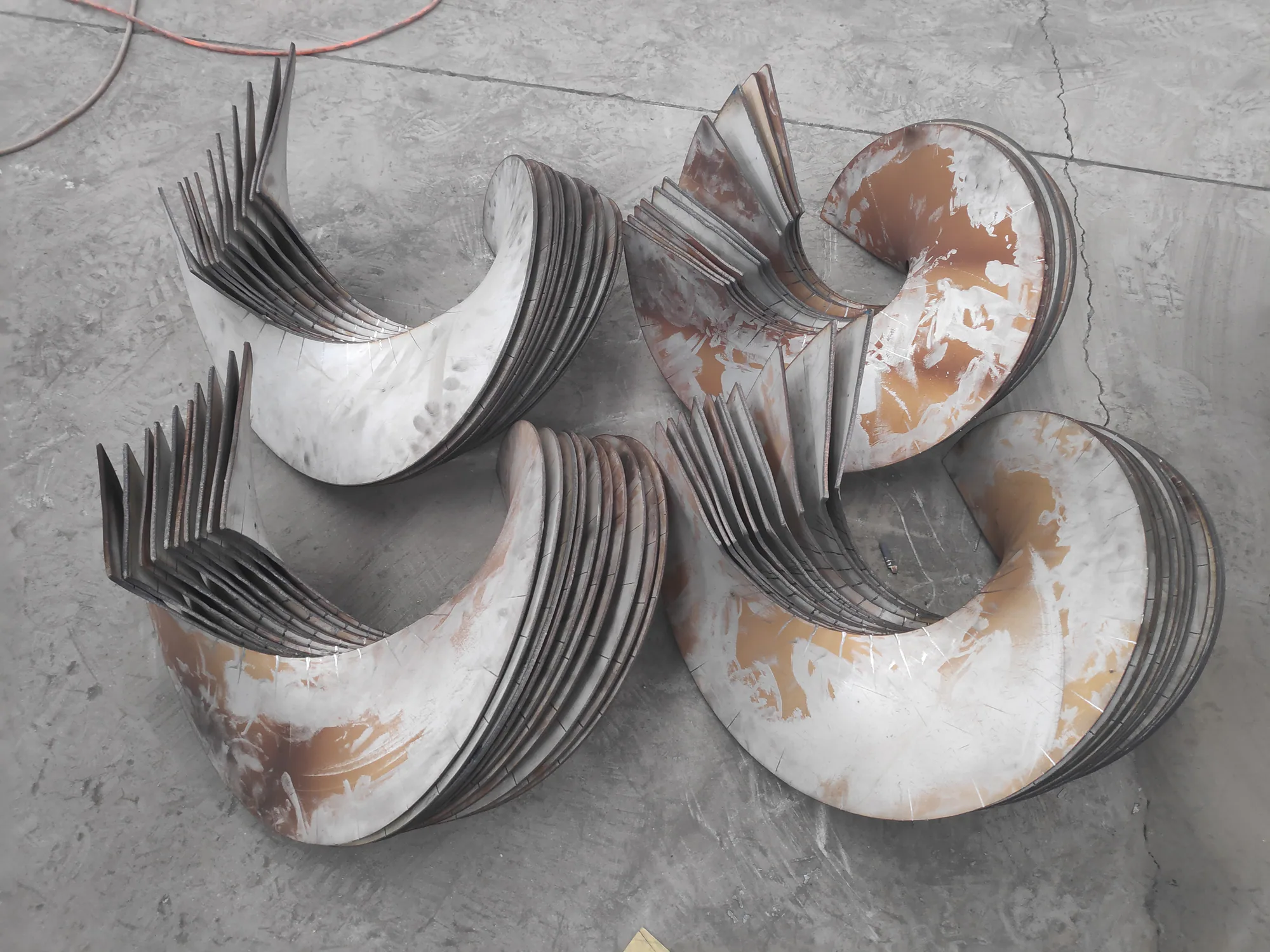

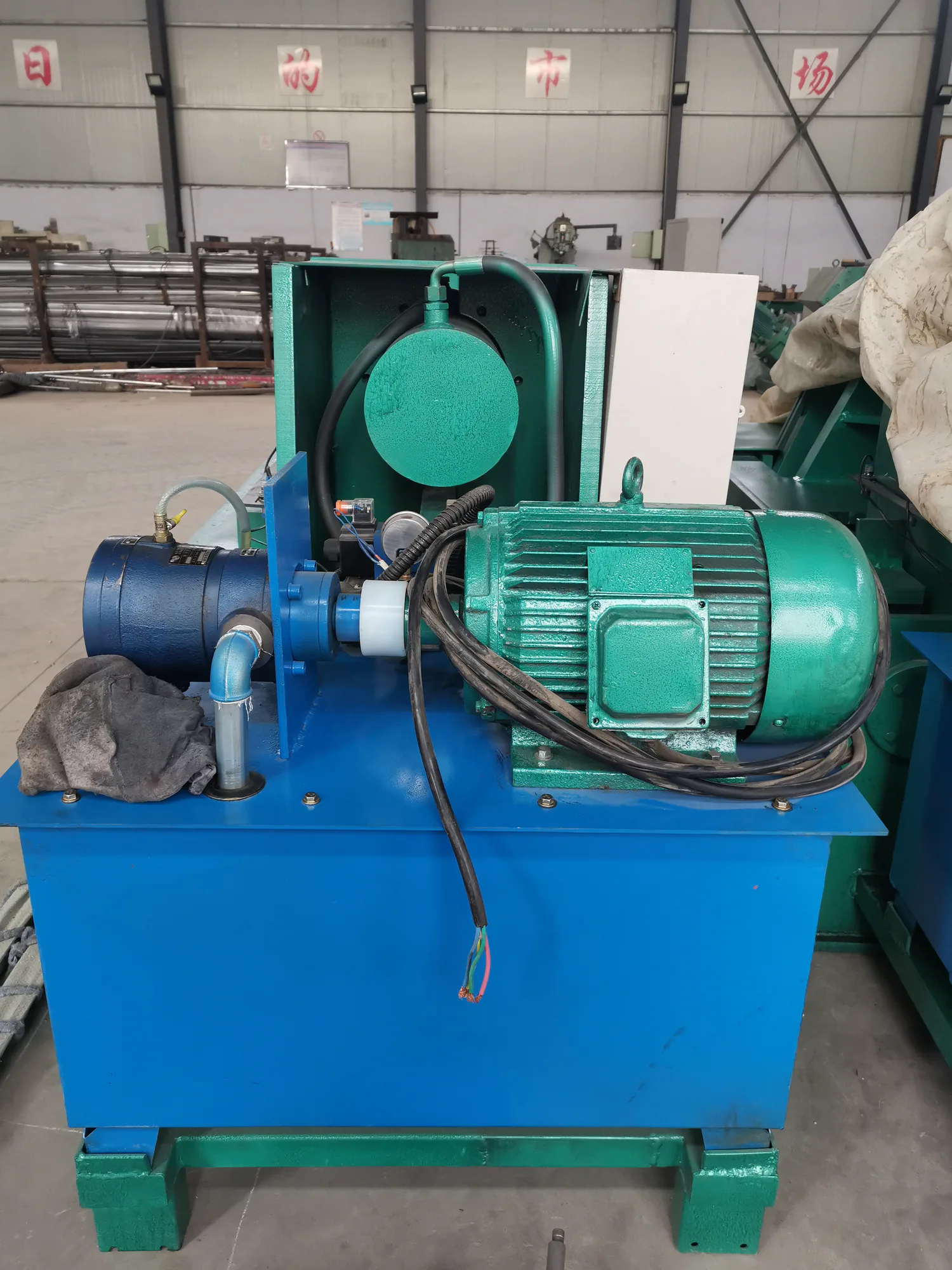

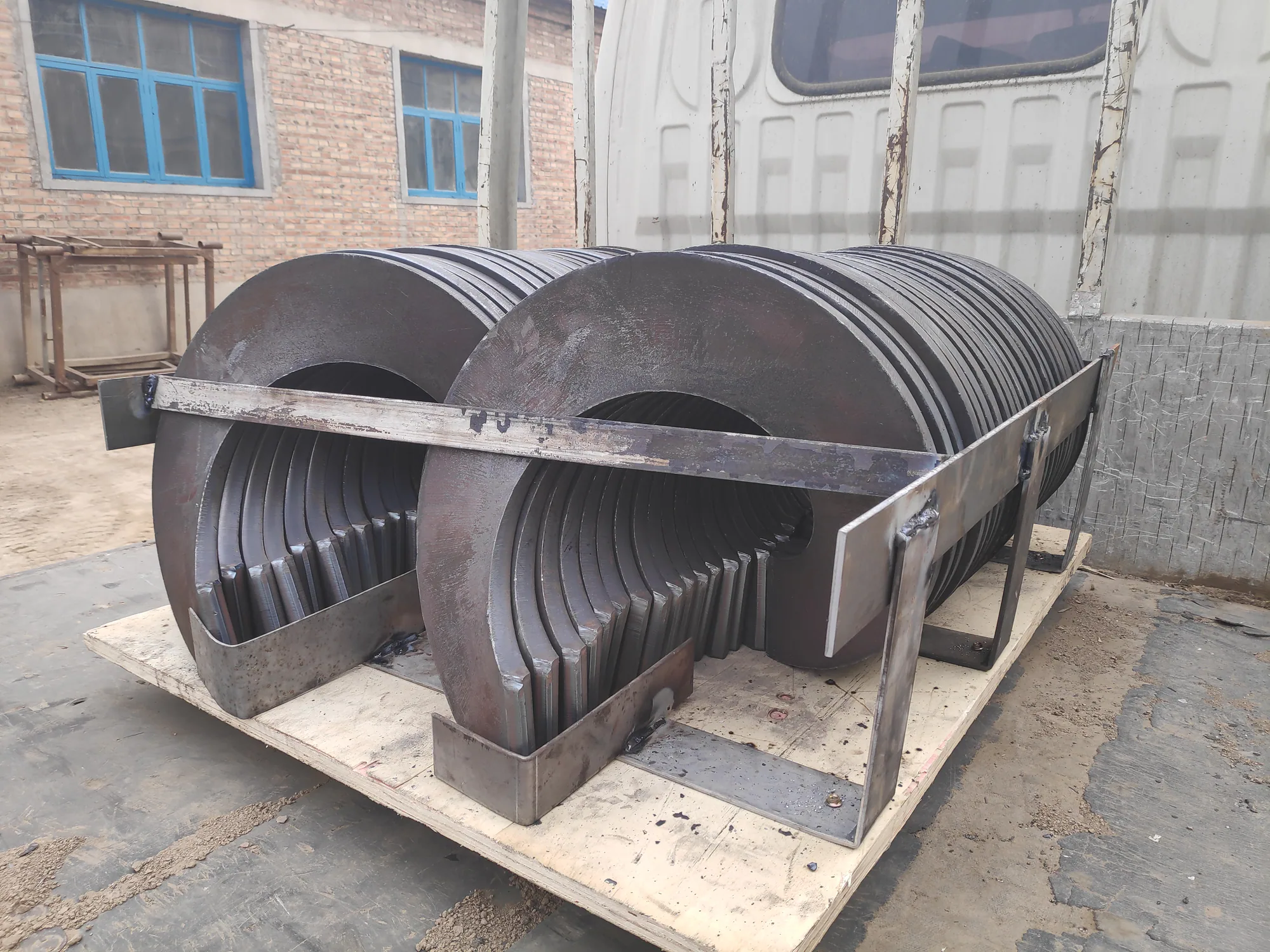

Product and process views
Production approach
Cold mould pressing forms individual blade segments with controlled inside diameter, outside diameter and pitch. It is intended for specifications where continuous forming is less practical.
Drawings and tooling
The final tooling and configuration should be checked against the material grade, plate thickness, required geometry and any cut-outs, bosses or gaps in the flight.
The working range must be confirmed against the buyer's drawing rather than inferred from one headline dimension. Tooling and machine configuration are reviewed before quotation. If more than one configuration is available, the final machine scope, included tooling and applicable working range are those stated in the approved quotation.
Best suited to special flight work
The press route is designed for single-pitch segments where diameter, thickness or material makes a continuous method unsuitable. It can support equal or variable diameters and pitches, as well as engineered rim or root features when these are included in the drawing.
Installation and handling inputs
Provide a workshop plan showing blank loading, lifting equipment, press access, tooling-change space, dimensional checking and finished-segment storage. State the destination voltage, phase and frequency so the final electrical and hydraulic configuration can be confirmed in the quotation.
What to send for review
Provide the segment OD, ID, pitch, thickness, plate grade, required quantity and joining/weld preparation. For projects using wear plate or stainless steel, include the material designation so the forming approach can be checked before tooling is confirmed.
Quote checklist
- Segment OD, ID, pitch, thickness, hand and quantity
- Material grade, plate condition and any wear requirement
- Constant or variable diameter and pitch schedule
- Cut-outs, bosses, gaps, shaped edges and tolerances
- Required moulds, change parts and trial material
- Voltage, phase, frequency and available connected load
- Floor plan, lifting method and upstream blank preparation
- Drawing of the segment and finished assembled flight
Before quotation
Frequently asked questions
Use these answers as a starting point. Final geometry, material and equipment scope are confirmed from the project information.
Is the published GX800S range guaranteed for every blade drawing?
No. Working range must be confirmed from the complete segment drawing, material grade, plate condition, thickness, pitch and required features.
What tooling information is needed before quotation?
Send OD, ID, pitch, thickness, hand, material and any cut-outs, bosses, gaps or shaped edges. Include drawings for the smallest, largest and most difficult segments.
Can different electrical or machine configurations be supplied?
Configuration may vary by project. The approved quotation confirms the final electrical supply, machine scope, tooling and applicable working range.
What installation information should the buyer provide?
Share the floor plan, lifting method, plate and blank handling, operator access, tooling-change area and the planned checking and segment-storage stations.
