HP850B Sectional Flight Forming Machine
Custom-size HP850B hydraulic sectional flight pressing machine with a catalogue maximum thickness of 50 mm and maximum pitch of 2,000 mm.
Engineering fit
Built around the dimensions, material and production target that matter
The HP850B catalogue row lists a customized machine size, 8.7 t weight and 18.5 kW motor.
Use the stated range as a practical starting point. We confirm the final configuration against your drawing, material and operating conditions.
Discuss this product
- Heavy sectional flights
- Thick spiral blade segments
- Large custom mould programs
Product data
Product Specifications
| Parameter | Specification |
|---|---|
| Maximum thickness | 50 mm |
| Minimum ID | 100 mm |
| Maximum OD | 850 mm |
| Maximum pitch | 2,000 mm |
| Mould height | 850 mm |
| Machine size | Customized |
| Machine weight | 8.7 t |
| Motor power | 18.5 kW |
| Hydraulic cylinder | 240 t |
| Catalogue pressure | 20 MPa |
Workshop reference

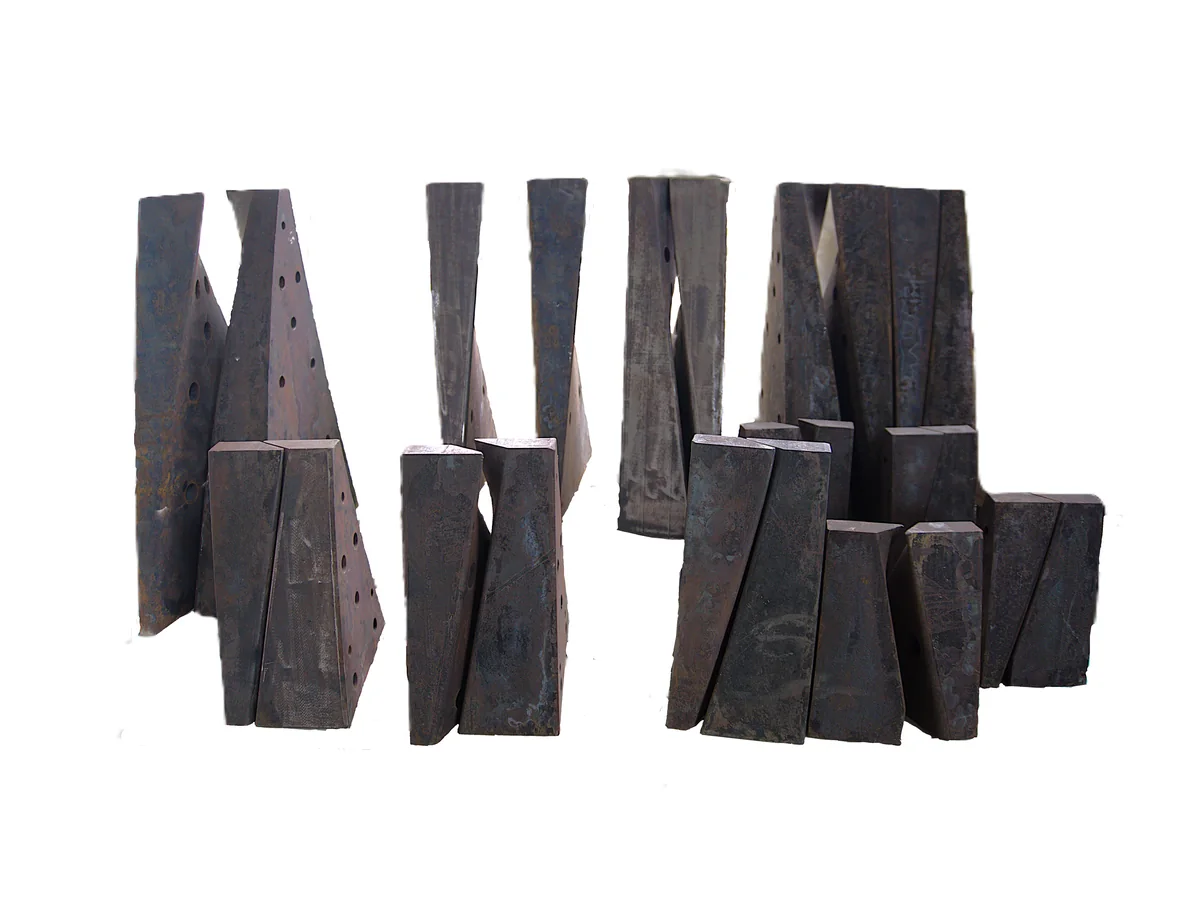

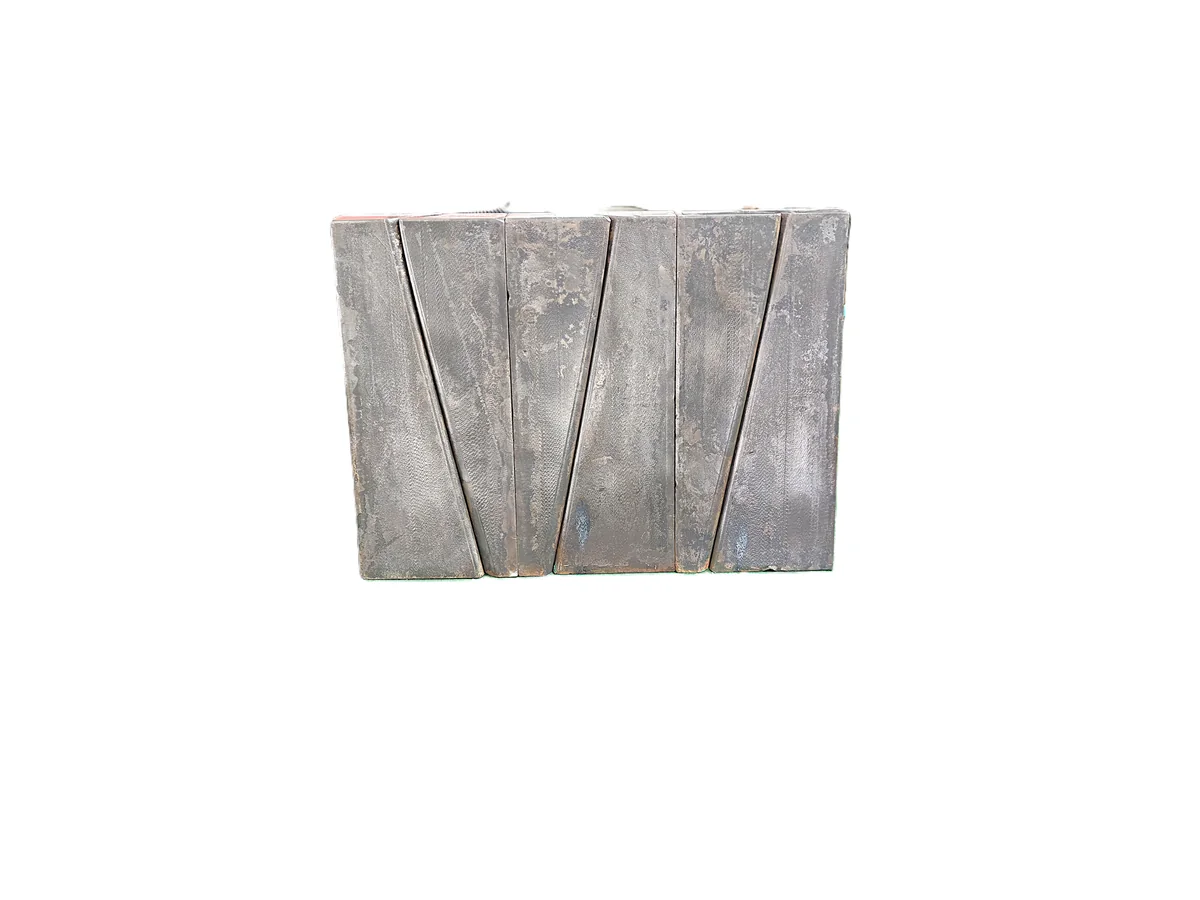

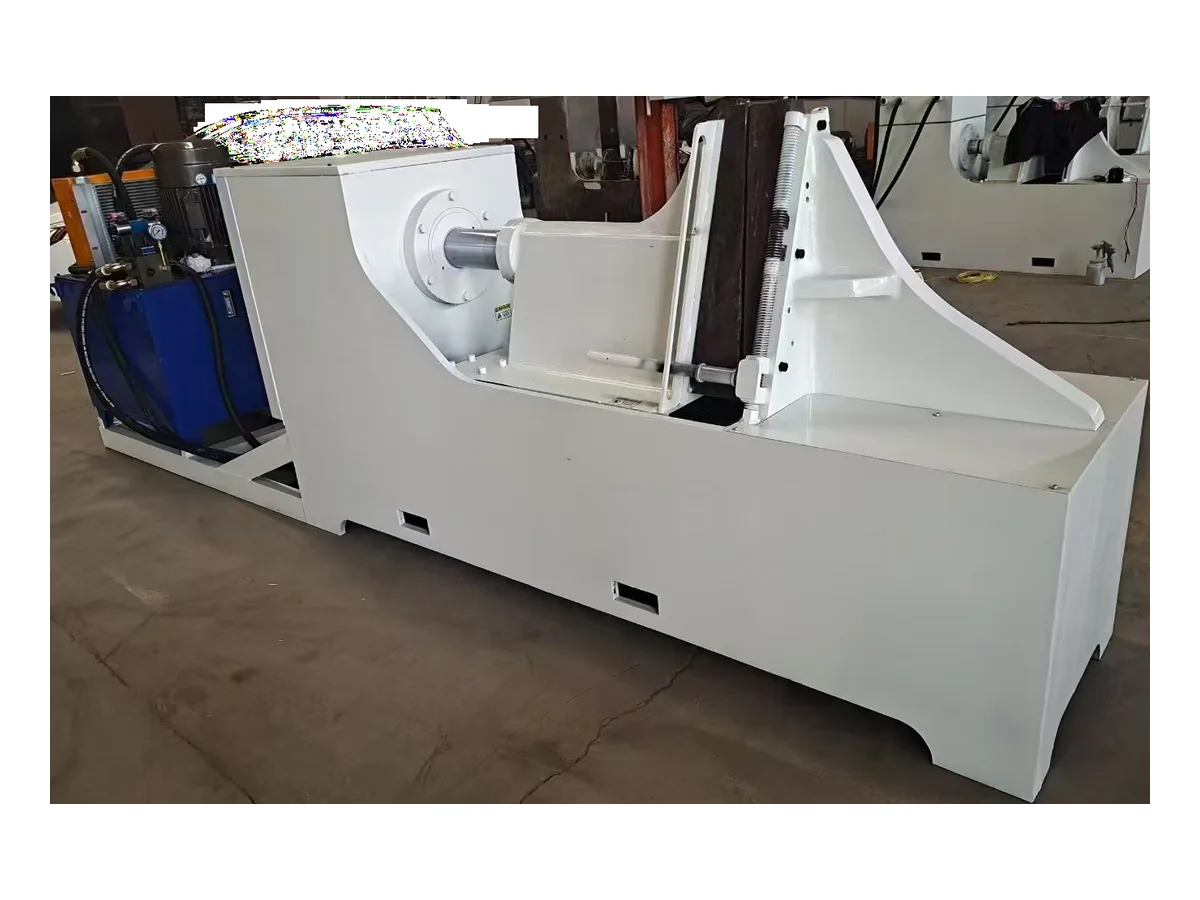

Product and process views
Catalogue configuration
The HP Series catalogue lists HP850B with a 50 mm maximum thickness, 100 mm minimum ID, 850 mm maximum OD, 2,000 mm maximum pitch and 850 mm mould height. Each value is a separate catalogue limit; a particular combination must be confirmed from drawings and material.
Hydraulic and installation scope
The HP850B row lists customized machine dimensions, 8.7 t weight, an 18.5 kW motor and a 240 t hydraulic cylinder at 20 MPa. Confirm the final machine size, foundation, unloading route, power supply, hydraulic service and moulds in the approved quotation.
Model and route comparison
Use the same target drawings to compare HP180 and the separate HS800S hydraulic pressing machine. Do not select from a single maximum dimension.
Before quotation
Frequently asked questions
Use these answers as a starting point. Final geometry, material and equipment scope are confirmed from the project information.
Is HP850B a fixed-size machine?
No. The catalogue specifies a customized machine size. Its listed weight is 8.7 t; the final machine drawing and site requirements must be approved for the order.
How should HP850B be compared with HS800S?
Compare the full segment drawing, material, tooling and installation scope. The two names do not imply equivalent working ranges.
