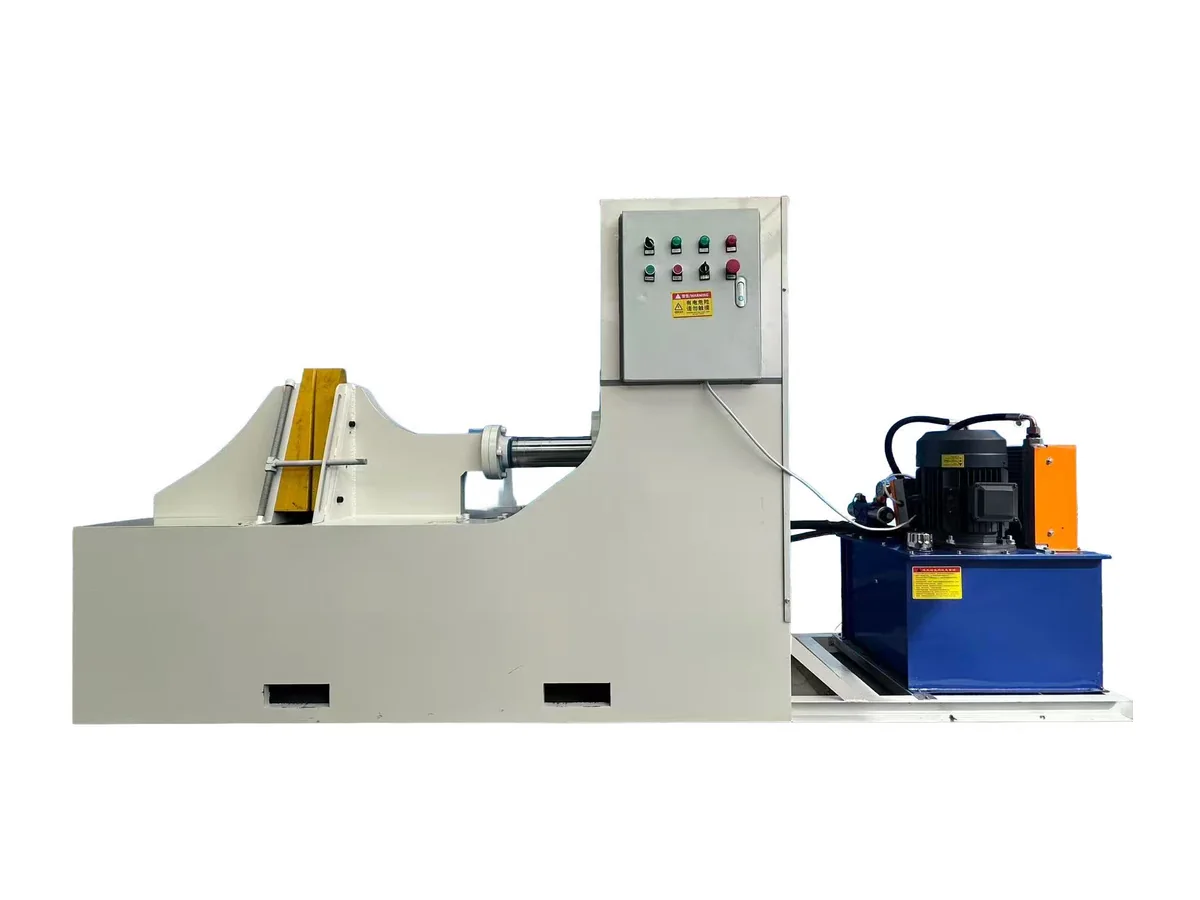

HP180 Sectional Flight Forming Machine
HP180 hydraulic sectional flight forming machine with a catalogue maximum thickness of 25 mm and maximum OD of 1,000 mm.
Engineering fit
Built around the dimensions, material and production target that matter
The HP180 catalogue configuration combines a 60-ton hydraulic cylinder with a 5.5 kW motor.
Use the stated range as a practical starting point. We confirm the final configuration against your drawing, material and operating conditions.
Discuss this product
- Larger sectional flights
- Thick conveyor segments
- Custom spiral blade forming
Product data
Product Specifications
| Parameter | Specification |
|---|---|
| Maximum thickness | 25 mm |
| Minimum ID | 60 mm |
| Maximum OD | 1,000 mm |
| Maximum pitch | 1,000 mm |
| Mould height | 500 mm |
| Machine size | 2,900 × 600 × 1,700 mm |
| Machine weight | 1.85 t |
| Motor power | 5.5 kW |
| Hydraulic cylinder | 60 t |
| Catalogue pressure | 20 MPa |
Workshop reference

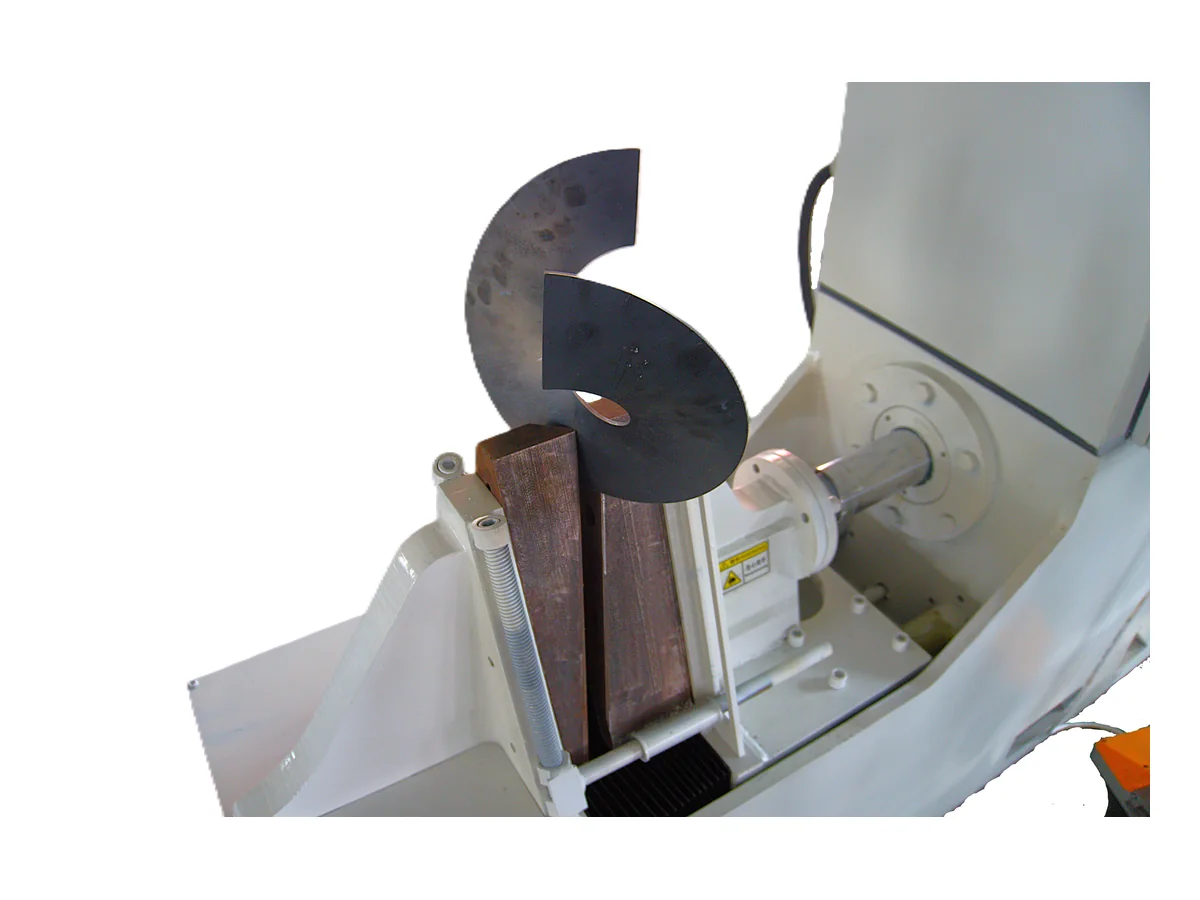

Product and process views
Catalogue configuration
The HP Series catalogue lists HP180 with a 25 mm maximum thickness, 60 mm minimum ID, 1,000 mm maximum OD, 1,000 mm maximum pitch and 500 mm mould height. Combined capability must be checked against the intended material and finished segment drawing.
Machine and site planning
The listed size is 2,900 × 600 × 1,700 mm with a 1.85 t machine weight, 5.5 kW motor and 60 t hydraulic cylinder at 20 MPa. Confirm destination supply, foundation, blank handling, access and tooling in the quotation.
Selecting a model
Compare HP150 and HP850B against the same representative drawings. The separate HS800S pressing machine is another route requiring its own tooling and specification review.
Before quotation
Frequently asked questions
Use these answers as a starting point. Final geometry, material and equipment scope are confirmed from the project information.
Does a 60-ton cylinder mean every 25 mm blank is suitable?
No. Material grade, blank width, OD, ID, pitch and mould geometry must be checked together before confirming a forming range.
What is the catalogue machine weight?
The HP180 row lists 1.85 t and a 2,900 × 600 × 1,700 mm machine size.
